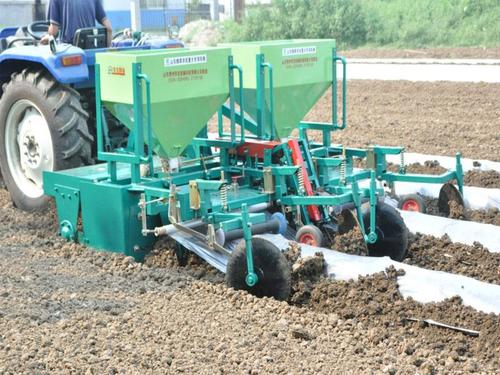

Application Principle Of Ridging Film Mulching Machine

The ridging film mulching machine is a utility model seedling transplanter. The seedling transplanter provides a transplanter with no injury to seedlings and high survival rate of seedling transplanting.

The ridging film mulching machine comprises a frame and a seat installed on the frame, a transmission box, a right conveyor belt, a seedling tray, a support wheel, a depth limiting driving wheel, a ditcher, a stubble breaking disc, a foot pedal and a left conveyor belt. For each seedling transplanting unit, the two depth limiting driving wheels are symmetrically inclined.

Each ridging film mulching machine depth limiting driving wheel is composed of a driving rim, anti-skid convex teeth, a wheel hub and a spoke plate. The driving rim is fixedly installed on the spoke plate uniformly arranged along the circumference, and the outer side of the driving rim is uniformly arranged with anti-skid convex teeth along the circumference. The driving rim and the anti-skid convex teeth are designed as an integrated forming structure, and are made of styrene butadiene rubber.
