Production Explanation Of Medicine Ridging Film Mulching Machine

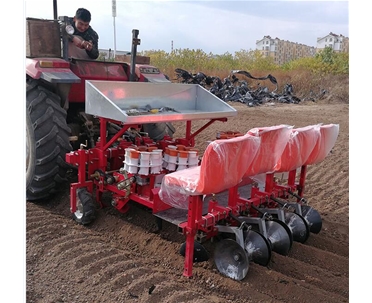

The medicinal ridging film mulching machine is a kind of chrysanthemum seedling land preparation and transplanter designed for the shortcomings of artificial cultivation of chrysanthemum seedlings, which can be used with large, medium and small four-wheel tractors. Holes, seedling placement, water injection, compaction and other processes. It has the characteristics of convenient operation and high work efficiency. Compared with manual transplanting, ridging film mulching machine can save a lot of labor.

The technical solution of the medicinal ridging film mulching machine is: the designed chrysanthemum seedling soil preparation and transplanter, which consists of a suspension device, a frame, a ridge device, a filming device, a water injection device, a clamping and transplanting device, a transplanting suppression device, a seat, etc. composition.

The suspension device adopts three-point hydraulic suspension, the suspension seat is welded to the frame, and the suspension seat is connected with the hydraulic suspension rod on the tractor through a pin shaft; the frame is composed of two parts, the upper frame and the lower frame, the upper frame and the lower frame The frame is connected by a vertical frame, the upper frame is mainly used to place the water tank, and the lower frame is mainly used to fix ridges, film laying, holding devices and seats; the ridging device is composed of soil collecting plates and forming plates; soil collecting plates It is made of steel plate and is welded and connected to the ridge frame; the forming plate is made of steel plate and is welded and connected to the ridge frame.

The ridging film mulching machine is composed of a film support frame, a film pressing roller device, a film pressing plate device, and a soil covering device; the water injection device is composed of a water tank, a water injection control switch, and a water injection pipe; It is composed of a hole clamping clip and spokes; the suppression device is mainly composed of a suppression rod and a suppression wheel; the seat is fixed on the lower frame through the chair frame, and the seat can be adjusted front, back, left, and right.

The medicinal ridging film mulching machine includes a suspension device, a frame, a ridge device, a filming device, a water injection device, a clamping and transplanting device, a transplanting suppression device, a seat, etc.; the suspension device adopts a three-point suspension and is composed of a suspension seat; It consists of two parts, divided into an upper frame and a lower frame. The upper frame and the lower frame are connected by a vertical frame. The upper frame is mainly used to place the water tank, and the lower frame is mainly used to fix the ridging, filming, and holding devices. And seat; the ridging device consists of a soil collecting board.
