Advantages Of Our New Farm Corn Combine Harvester

The existing farm corn combine harvester has the following shortcomings:
1. The front ear picking device cannot be rotated to adjust the height;
2. The two ear picking rollers are arranged in parallel, which makes the corn ear fall to the middle unsmooth;
3. The second pair There is no device for transporting ears of corn between the ear picking rollers, which causes the backward transportation of the ears of corn.

The utility model aims to provide a farm corn combine harvester, which overcomes the disadvantages of the existing corn combine harvester.

The utility farm corn combine harvester model is composed of a four-wheel walking machine, an engine, a cab, a double ridge corn ear picking device, a conveying device and a peeling device,

The engine, cab, double ridge corn ear picking device, conveying device and peeling device are set on the four-wheel walking machine, and the conveying device is composed of the first stage conveying device, the second stage conveying device and the chute

The primary conveying device is obliquely arranged on the right side of the four-wheel traveling machine, the lower end of the primary conveying device is connected with the double ridge corn ear picking device, the secondary conveying device is obliquely arranged on the right rear of the four-wheel traveling machine, and the upper and outer ends of the secondary conveying device are provided with chutes

The peeling farm corn combine harvester device is arranged between the lower end of the secondary conveying device and the upper end of the primary conveying device, the double ridge corn picking device is hinged at the front of the four-wheel traveling machinery, one end of the hydraulic oil cylinder is hinged at the front of the four-wheel traveling machinery, and the other end of the hydraulic oil cylinder is hinged at the bottom of the double ridge corn picking device, The transmission mechanism of the double ridge corn ear plucking device is connected with the output shaft of the engine by a universal connecting shaft;

The farm corn combine harvester double ridge corn ear picking device has two ears picking rollers, which are respectively arranged on both sides of the double ridge corn ear picking device. Each ear picking roller is composed of two ears picking rollers. The outer ear picking roller in each ear picking roller is higher than the inner ear picking roller, and each ear picking roller is inclined inward, so that the corn ears that are easy to be picked fall to the middle. A conveyor belt is arranged between the two ears picking rollers, The corn ears that are picked fall to the conveyor belt for backward transportation.

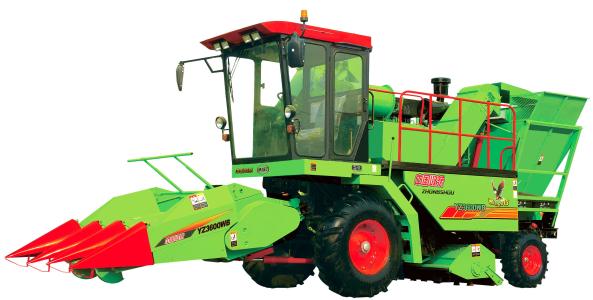

Advantages Of Our New Farm Corn Combine Harvester
